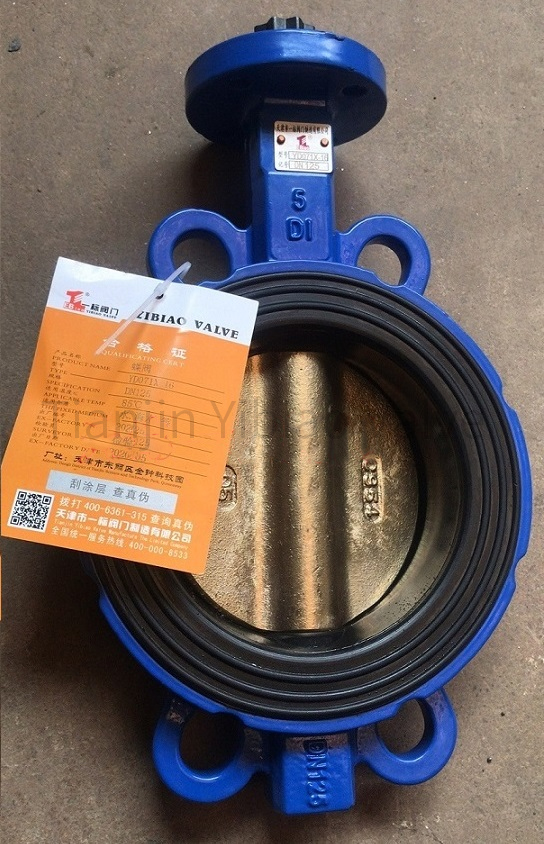

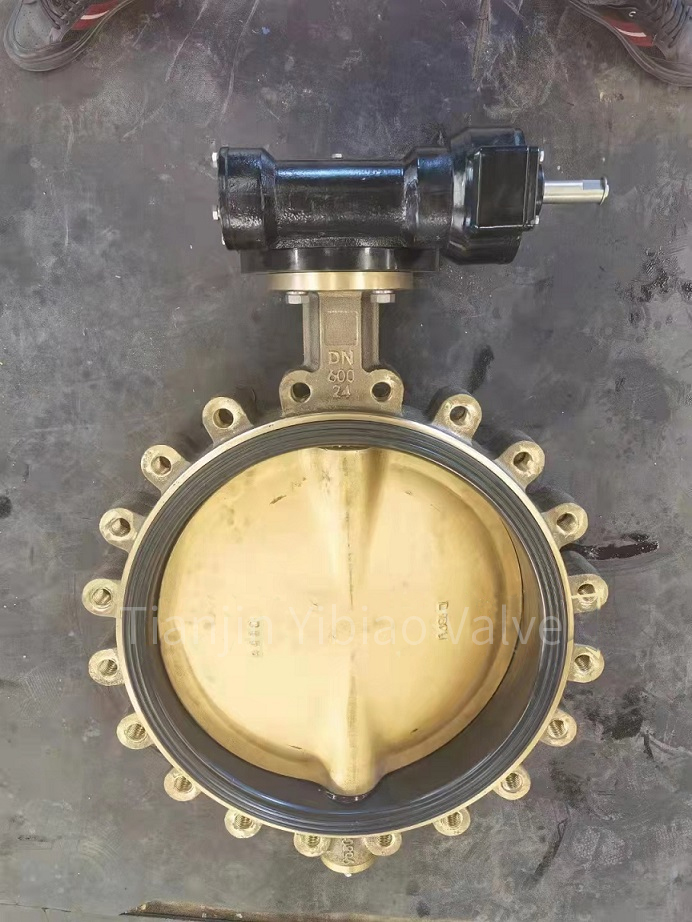

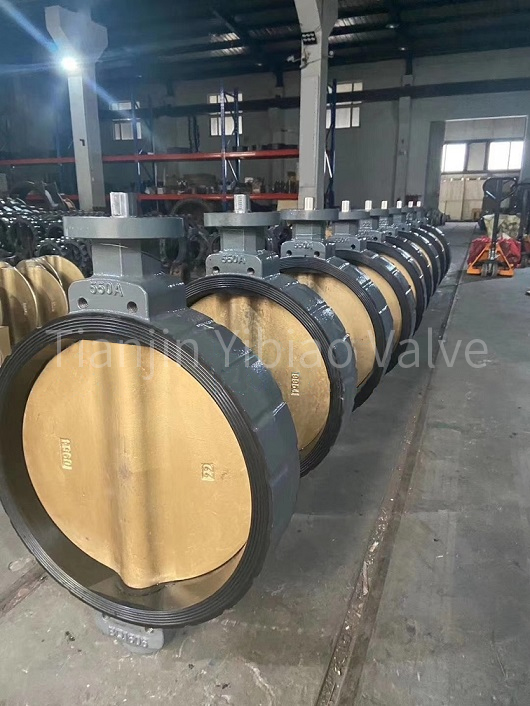

Aluminum Bronze Butterfly Valve, Electro-pneumatic Aluminum Bronze Butterfly Valve

Aluminum Bronze Electric Butterfly Valve ,Aluminum Bronze Valve Plate, EPDM Rubber ,Pneumatic Valve for Cross-sea Water

Pneumatic actuator: double-acting, single-acting

Driving air source: 5-7bar compressed air

Pneumatic accessories: limit switches, positioners, solenoid valves, filtering pressure reducing valve, handwheel organization

Nominal diameter: DN50-600mm

Nominal pressure: 1.6MPa

Applicable temperature：-40~+120℃

Connection: Clamping type, flange type

Valve body structure: center line

Raw material of valve body: ductile cast iron

Valve plate material: aluminum bronze

Valve seat fabric: EPDM

Applicable media: seawater, desalination
