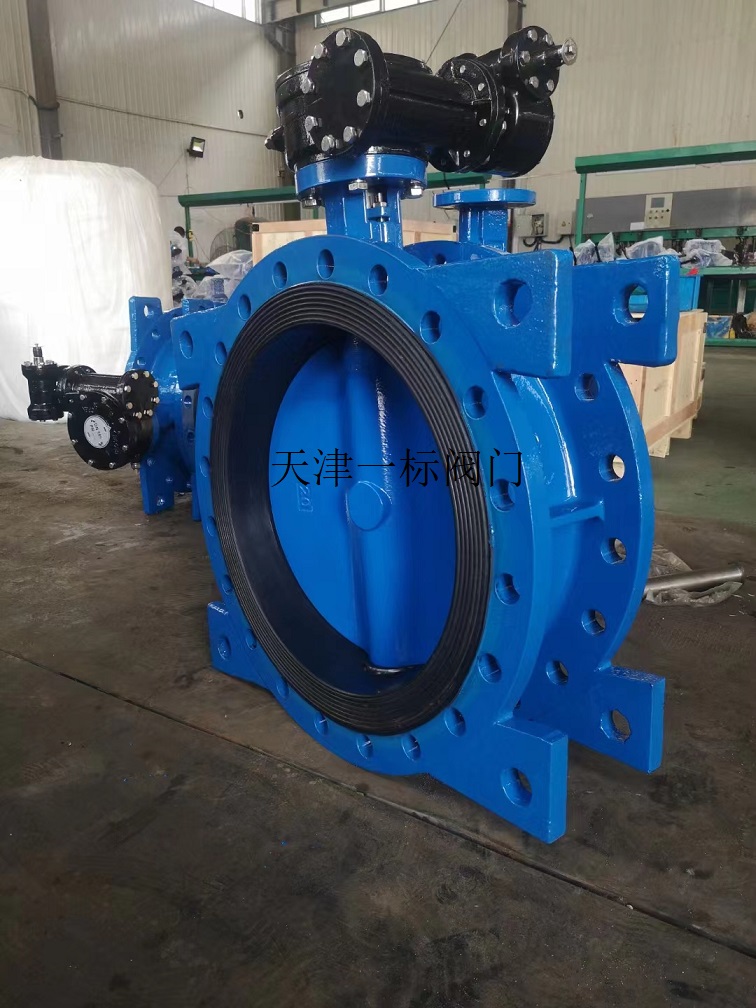

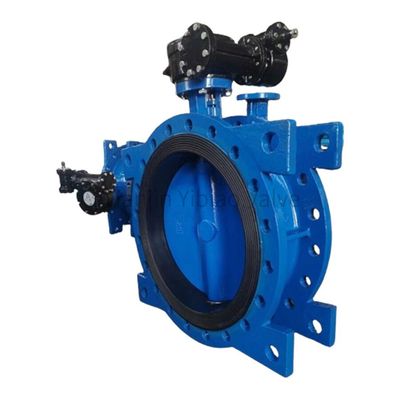

Comb type regulating butterfly valve

Comb type regulating butterfly valve
Product Details
Comb type regulating butterfly valve






TD941X-10 regulating butterfly valve adopts standard:
Manufacturing standardGB12238-89Flange StandardGB/T17241
GB9113
Structure length standardGB12221-89Inspection StandardsGB/T13927-92

TD941X-10 regulating butterfly valve main performance specification:

Model numberNominal pressure PN(MPa)Shell test pressure PS(MPa)Seal test pressure PS(MPa)Operating temperature(℃)Applicable medium
TD941X-101.01.41.1≤80℃Water, oil

TD941X-10 regulating butterfly valve main parts material:

Part NameValve body, butterfly plate阀杆密封圈filler
Makings

Gray cast iron

Ductile Iron

Cast Steel

Stainless Steel

Medium carbon steel, stainless steel (2Cr13)

1Cr18Ni9Ti

NBR

Ethylene Propylene Rubber

Polytetrafluoroethylene

Fluorine rubber
